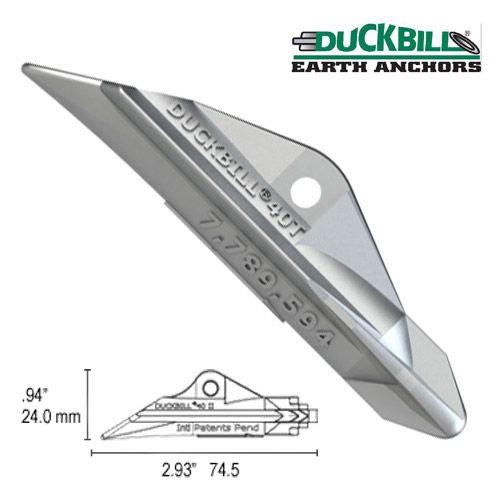

DUCKBILL anchors, a patented labor and time saving device, work like a toggle bolt in soil
DUCKBILLS are driven into the ground (with no holes, no digging and no concrete), providing a safe and environmentally sensitive installation.
An upward pull on the anchor tendon rotates the DUCKBILL into a perpendicular “anchor lock” position in undisturbed soil.
The result: superb holding capacities. DUCKBILL anchor systems offer the most effective, lightweight and economical solutions to any anchoring application, large or small.
MANTA RAYs are driven into the ground, not augured or torqued, nor is a hole dug or drilled.
There is “no disturbance” or “displacement” of soil. Unlike other anchoring systems, MANTA RAY actually compacts the soil around itself – a clean, safe and simple operation.

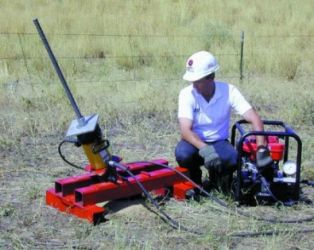

The anchors are driven with conventional hydraulic/pneumatic equipment that is readily available worldwide. Once driven to the proper depth, the rod/tendon attached to the anchor is pulled to rotate the anchor into undisturbed soil – like a toggle bolt. This is called “ANCHOR LOCKING” the anchor (using the MANTA RAY Anchor Locker). The anchor is pulled upon to reach the holding capacity required which is measured by a gauge on the “ANCHOR LOCKER.” Each anchor is immediately proof loaded to the exact capacity required. No other system offers this feature.
Proven world-wide, MANTA RAY Anchors are portable, lightweight and easy to use for any anchoring application.
Manta Ray Kit

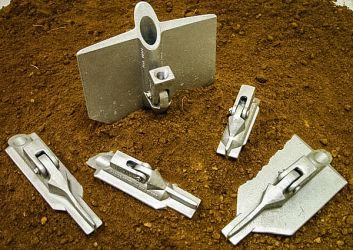

Sting Ray Anchor Photo
